Sewing Machine Parts -3

Sewing Machine Parts -3

Visit shop:

 Pack-It-Now

1	Upper Cover	11	T.T Lever Cam
2	Presser Bar with Guide	12	Knob
3	Arm Shaft	13	Thread Tension Regulator Type
4	Thread Tension set	14	Push Button
5	Face Plate	15	Thread Take up Lever
6	Stitch Regulator Push Back	16	Lock Pin
7	Arm Shaft Neck Bush	17	T.T. Lever Pin
8	Stitch Regulator Dial	18	Push Back Spring
9	Stitch Regulator	19	Indicator Dial
10	Needle Bar Link	20	Luxmi Seal Plate

Visit shop:

 Pack-It-Now

1	Needle Plate	12	Feed Fork
2	Bobbin Winder	13	Face Plate
3	Feed Rock Shaft (2816) with Crank	14	Knee Lifter Bracket
4	Feed Rock Shaft (15297) with Crank	15	Stitch Regulator
5	Arm Shaft	16	Screw 3/16 with Head and H.A. Screw
6	Knee Lifter Bracket	17	Needle Bar Bush (Lower)
7	Knee Lifter Levers (Lower)	18	T.T. Lever
8	Connecting Rod	19	Cam Screw
9	Knee Lifter Guide Lever (upper)	20	Oil Cup Black
10	Knee Lifter Bracket Rod	21	Stop Motion
11	Presser Foot	22	Small Gear

Sewing Machine Parts -2

Sewing Machine Parts -2

Visit shop:

 Pack-It-Now

1	Bobbin Winder	14	Feed Dog
2	Bobbin Winder Ring	15	Stop Motion
3	Feed Bar	16	Slide Plate
4	Stitch Regulator	17	Feed Cam
5	Hand Attachment	18	Neck Bush
6	Hand Attachment Screw	19	Wheel Bush
7	Medallion	20	T.T. Cam
8	Stitch Regulator Plate	21	Feed Rock Shaft
9	Connecting Rod	22	Arm Shaft
10	Feed Fork	23	Carrier Shaft
11	Face Plate Screw	24	Rock Shaft
12	Face Plate	25	Balance Wheel
13	Feed Lifting Rock Shaft

26	Needle Plate	47	.15 x 64 Head Screw
27	Needle Bar	48	Needle Plate Screw
28	Pressure Bar	49	Shuttle Race Screw
29	Bobbin Case	50	Pressure Bar Cap
30	Thread Take up Lever	51	Hand Attachment Screw
31	Pressure Bar Lifter	52	Outer Dial
32	Shuttle Hook	53	Bobbin
33	Eyelet	54	Feed Fork Screw
34	Link Screw	55	Inner Screw
35	Needle Clamp	56	Connecting Rod Screw
36	Pressure Foot Screws	57	Thread Guide
37	Roller 2057	58	Pressure Bar Spring
38	Roller 1813	59	Pressure Foot
39	Roller Regulator	60	Pressure Bar Bracket
40	Inner Dial	61	B / Winder Screw
41	Feed Drop	62	Shuttle Race Screw
42	Center Large	63	.15 x 64 Large Screw
43	Center Small	64	Fiber Washers
44	Stop Motion Screw	65	Needle Bar Link
45	Feed Dog Screw	66	Needle
46	Eyelet Screw	67	Knob Shaft

Sewing Machine Parts -1

Sewing Machine Parts -1

Visit shop:

 Pack-It-Now

1	Shuttle Race Holder	21	Bottom Link Pin
2	Feed Fork Small (Zig Zag)	22	Cut Carb
3	Shuttle Race	23	Oscillating Shaft with Roller
4	Balance Wheel	24	Stitch Regulator with Lever
5	Needle Bar & Presser Bar Guide Set	25	Luxmi Scale Plate
6	Arm Shaft	26	Ose Shaft Lock
7	Bobbin Winder	27	Large Gear
8	Shuttle Race Holder Guideset	28	Gank 2057 with Slider
9	Wire Lock Pin	29	Needle Plate
10	Shuttle Driver	30	Zigzag Chal
11	Zig Zag Lever	31	Bottom Link Patter
12	Shuttle Race Holder Clamp	32	Zig Zag Plate
13	Needle Bar Link	33	Pachomatic
14	Face Plate	34	Arm Shaft Gear
15	Feed Drop Down Pin	35	Zig Zag Cam
16	Feed Drop Plunger Guide Set	36	Down Rod Boot (Lower)
17	Feed Drop Knob	37	Wire Lock
18	Feed Drop Guide Crank	38	AC Lock
19	Feed Drop Pin Spring	39	Thread Spool Pin Stared
20	Feed Drop Crank with Roller	40	Down Rod Boot Upper

Visit shop:

 Pack-It-Now

Basic Parts of a Sewing Machine and Their Functions

The basic structure of sewing machine is the same whether it is hand-operated sewing, treadle sewing machine or electric sewing machine. The basic parts of a sewing are listed below and seen in Fig.

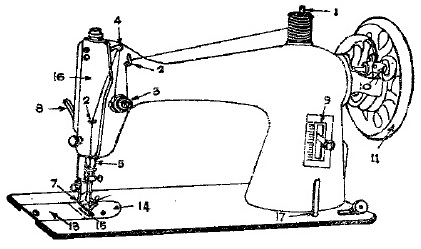

Parts of a Sewing Machine

1. Spool pin: It is fitted on top of the arm to hold the reel.

2. Thread guide: It holds the thread in position from the spool to the needle.

3. Tension disc: The two concave discs put together with the convex sides facing each other. The thread passes between the two. The tension of the thread is adjusted by a spring and nut which increases or decreases pressure

4. Take up lever: It is a lever fitted to the body of the arm. Its up and down motion feeds the thread to the needle and tightens the loop formed by the shuttle.

5. Needle bar: This is a steel rod to hold the needle at one end with the help of a clamp. Its main function is to give motion to the needle.

6. Bobbin case: This moves into position to catch the top thread and form the stitch as the needle is lowered into the bobbin chamber.

7. Presser foot: It is fixed to the presser bar to hold the cloth firmly in position when lowered.

8. Presser foot lifter: A lever attached to the presser bar for raising and lowering the presser foot.

9. Stitch regulator: This controls the length of the stitch.

10. Bobbin winder: A simple mechanism used for winding thread on the bobbin.

11. Fly Wheel: When this is made to revolve, it works the mechanism of the motion

12. Clutch or Thumb Screw: This is in the center of the fly wheel and it engages and disengages the stitching mechanism.

13. Slide Plate: A rectangular plate, which facilitates the removal of the bobbin case without lifting the machine.

14. Needle Plate or Throat Plate: A semi-circular disc with a hole to allow the needle to pass through it.

15. Feed dog: This consists of a set of teeth fitted below the needle plate. It helps to move the cloth forward while sewing.

16. Face plate: A cover which on removal gives access to the oiling points on the needle bar, presser bar and take-up lever.

17. Spool pin for bobbin winding: Spool of thread is placed on this at the time of bobbin winding.

18. Bed Slide Plate : Just to cover Bobbin case etc  assembly
